Fixed Table Type Vertical Clamping Vertical Injection Moulding Machine

Clamping Force : 15 tons to 250 tons
Four Column Vertical Clamping
Screw Type Injection System
Large L/D Ratio For Homogenous Optimum Melt
Smooth & Balanced Operations
Fully Microprocessor Controller
Power Saving High Tech
Hand Protection Safety Features

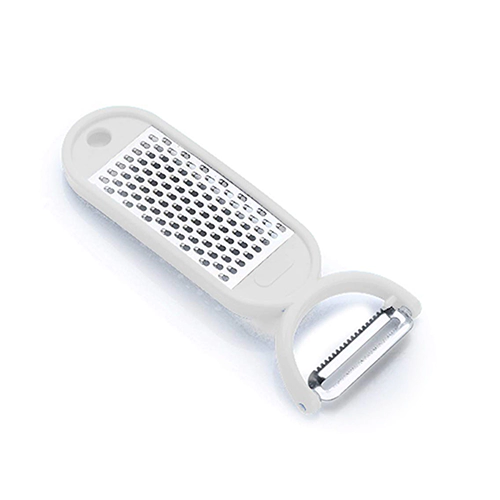

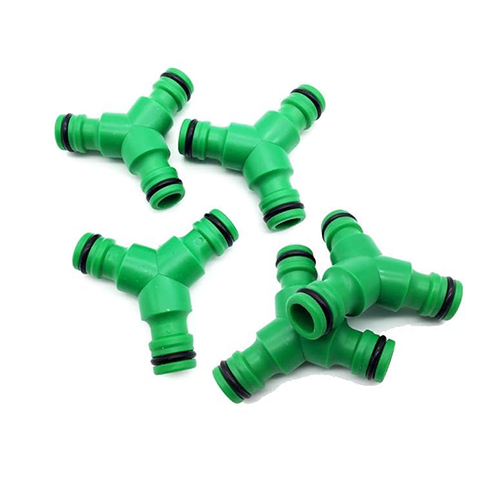

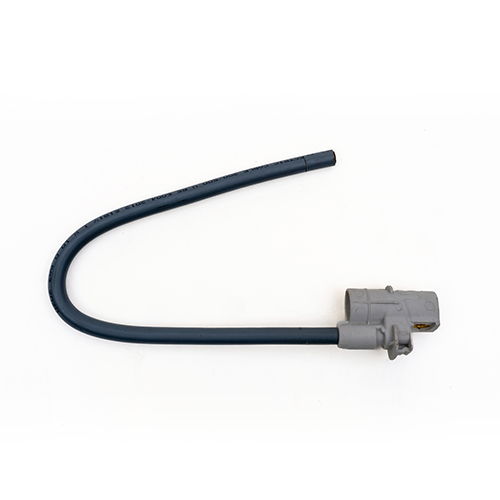

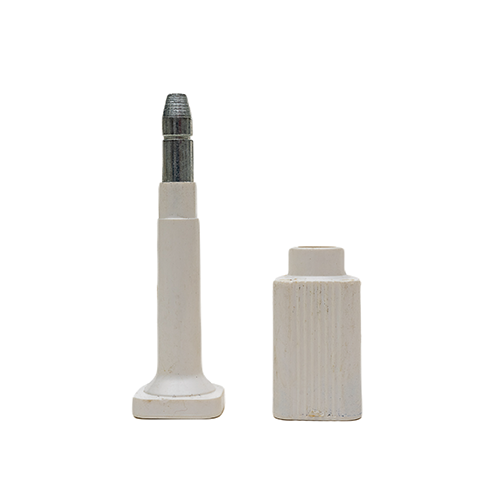

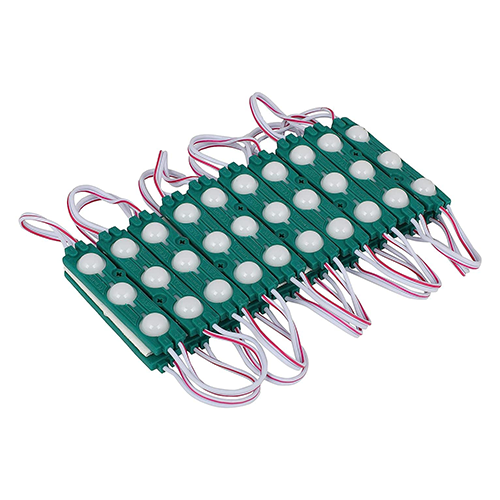

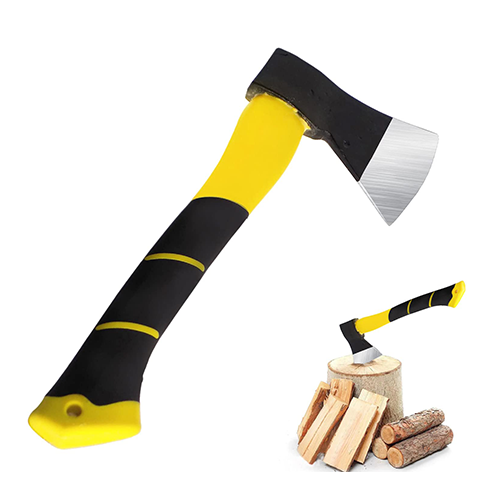

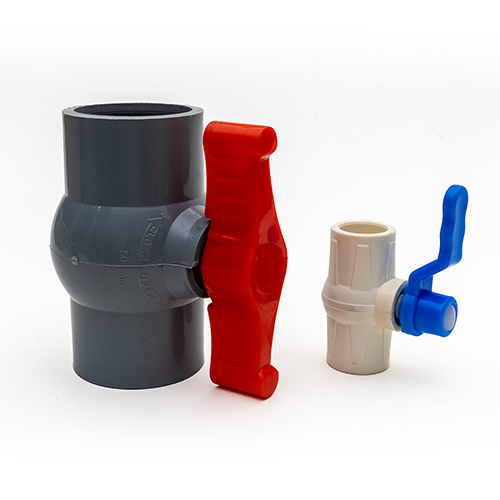

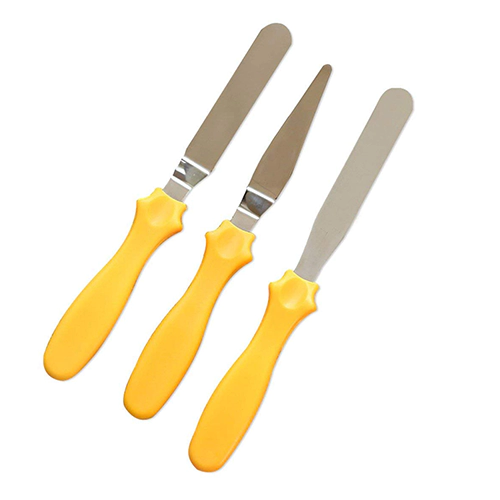

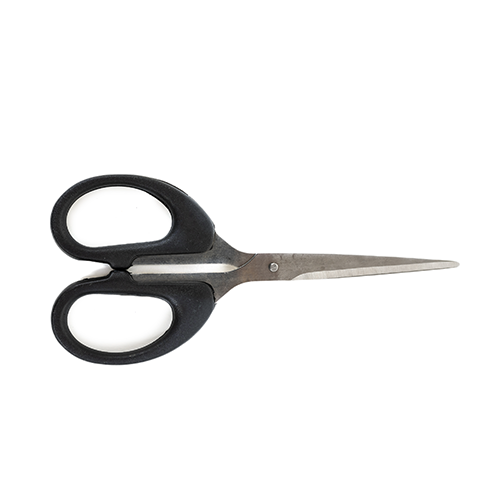

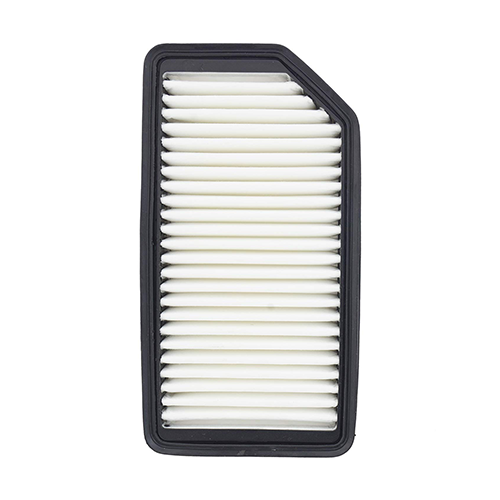

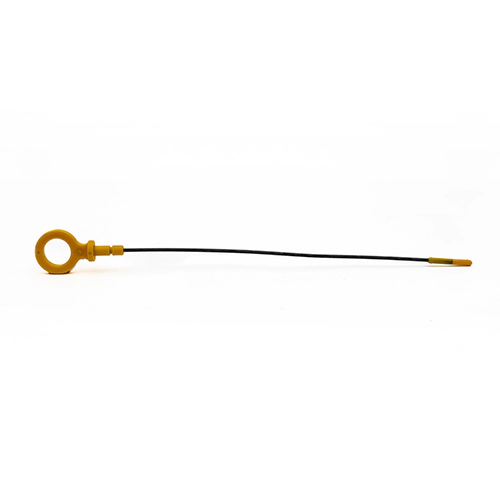

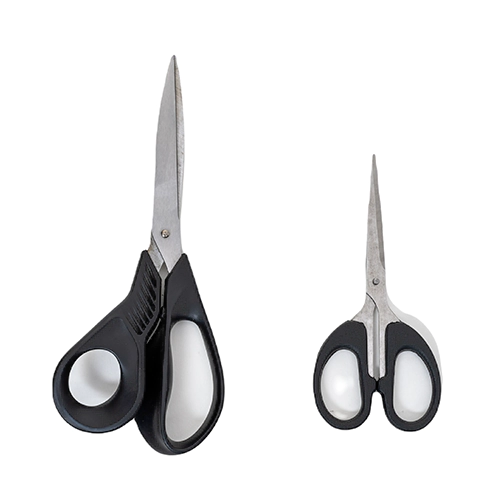

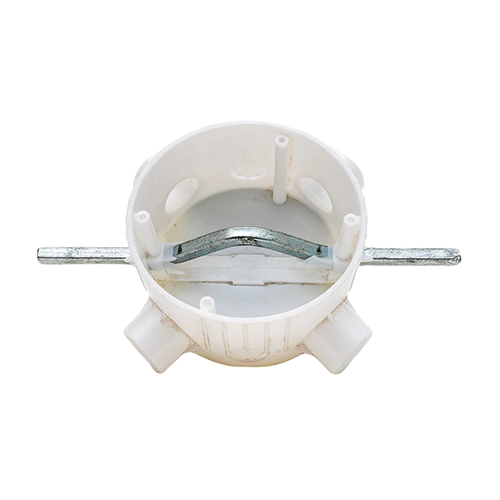

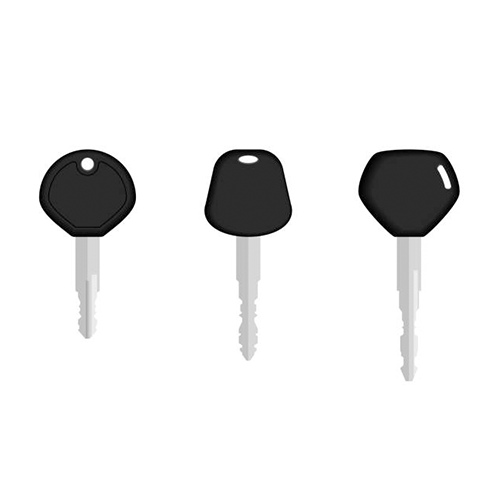

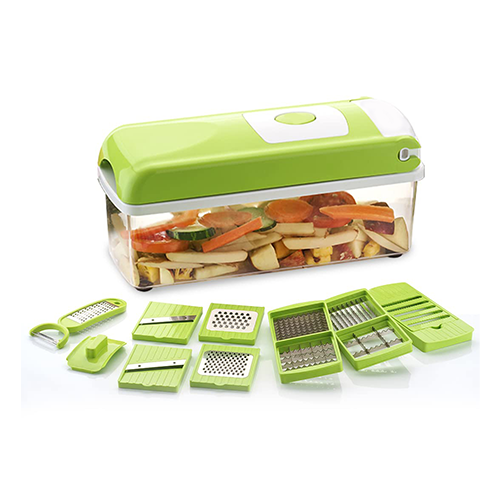

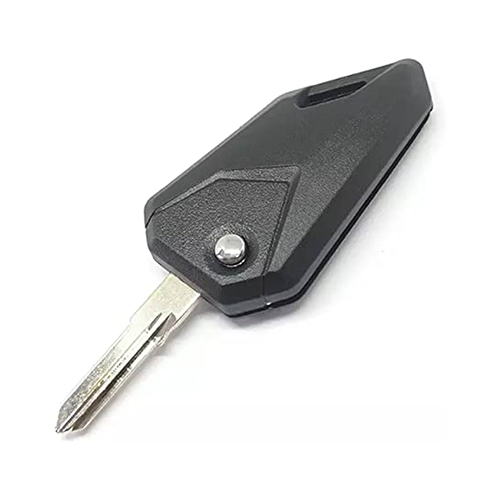

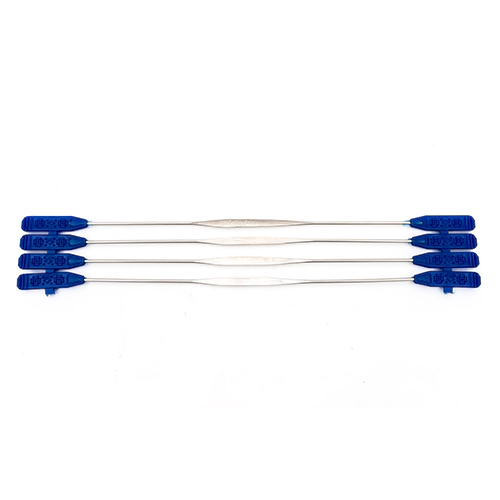

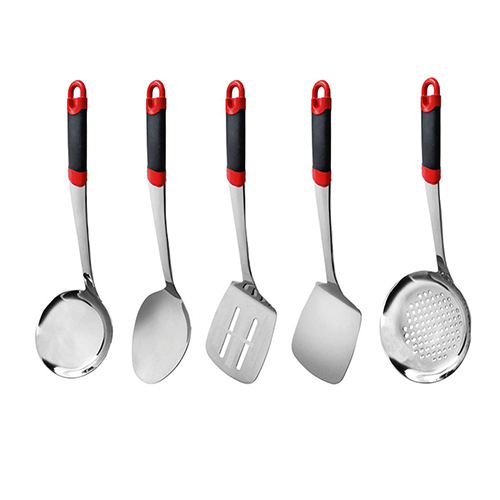

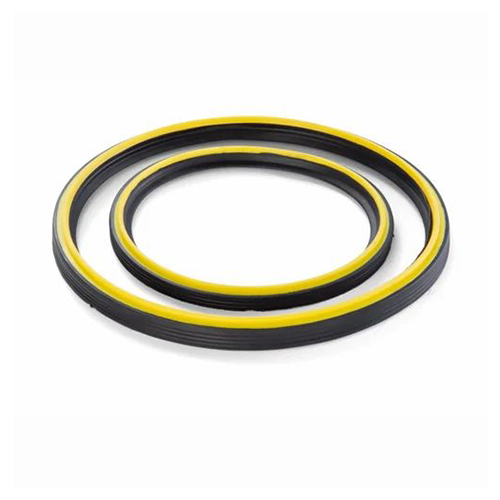

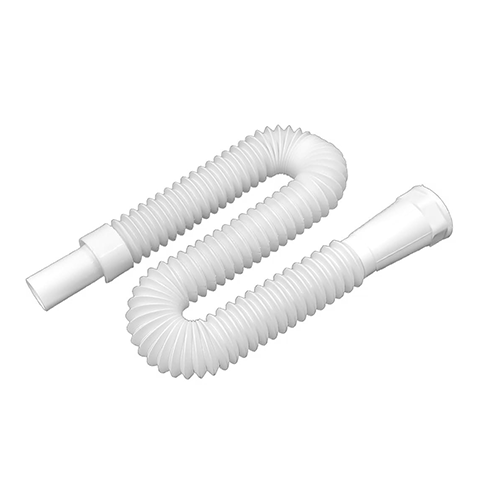

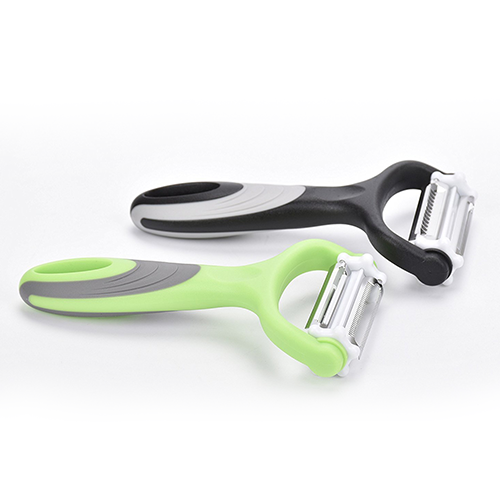

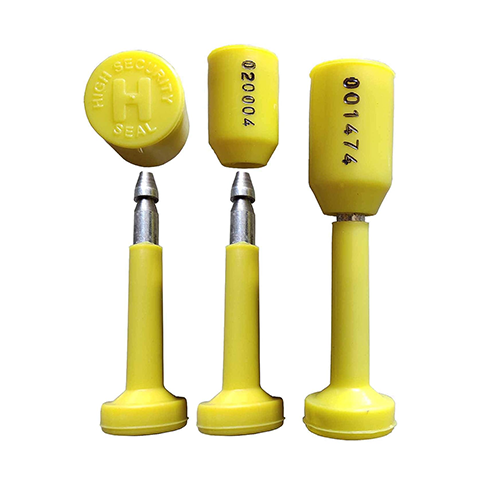

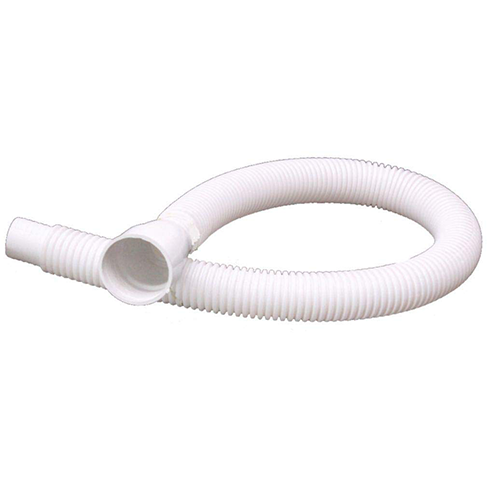

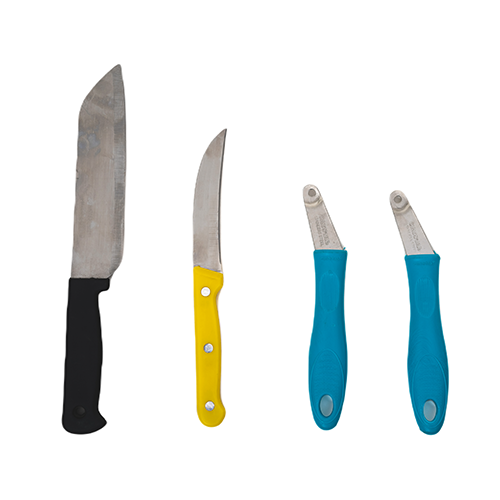

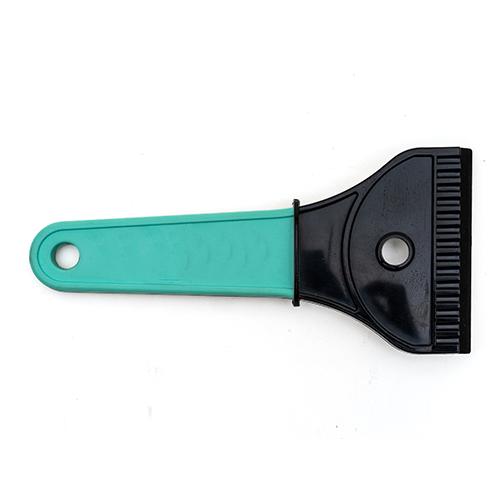

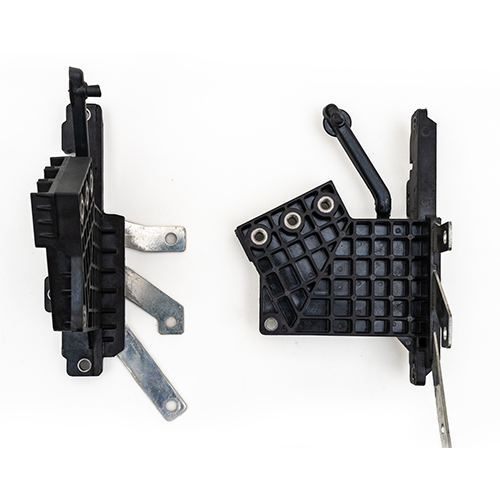

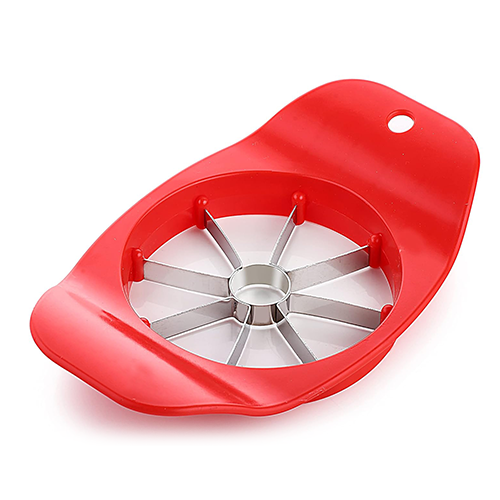

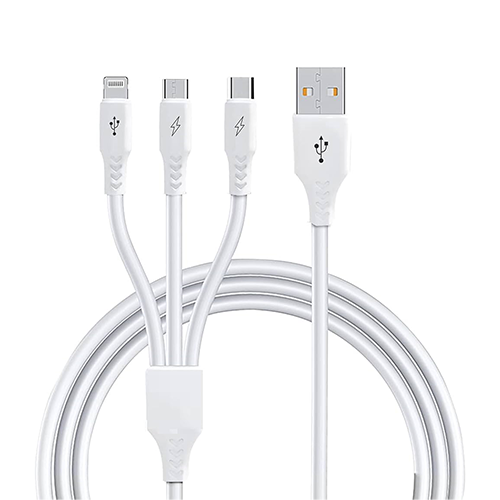

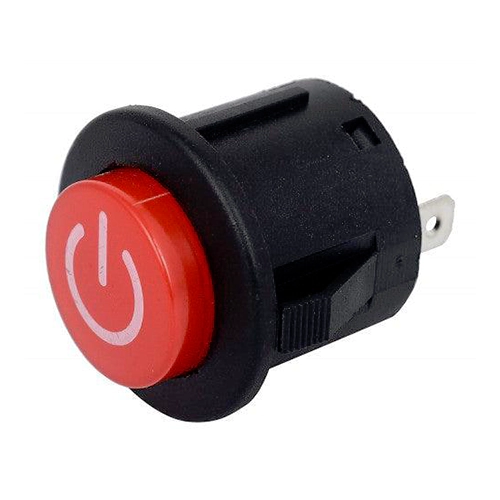

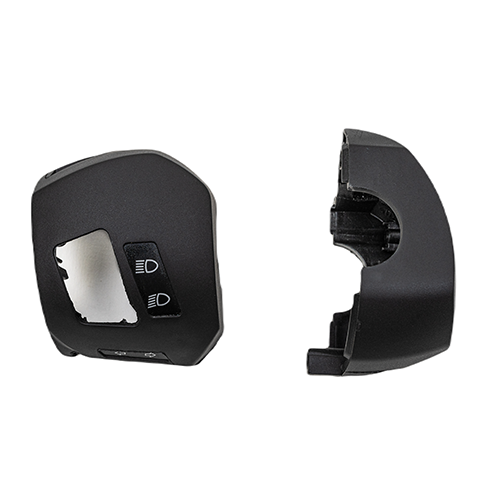

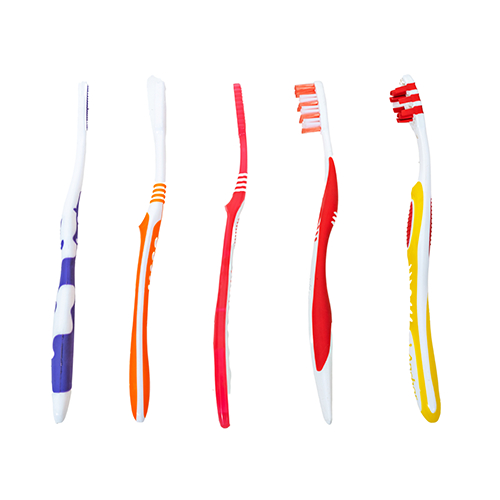

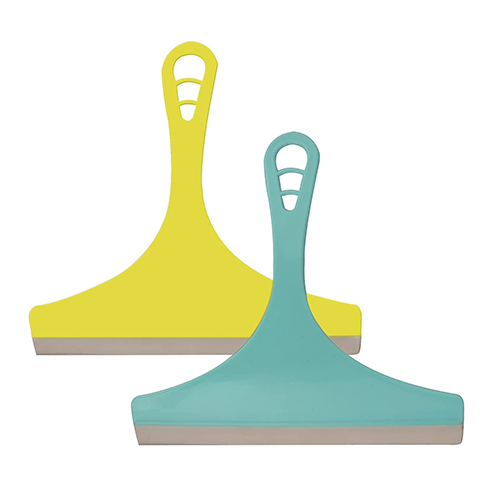

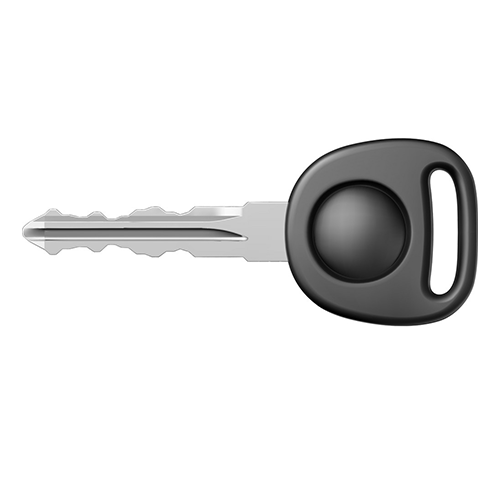

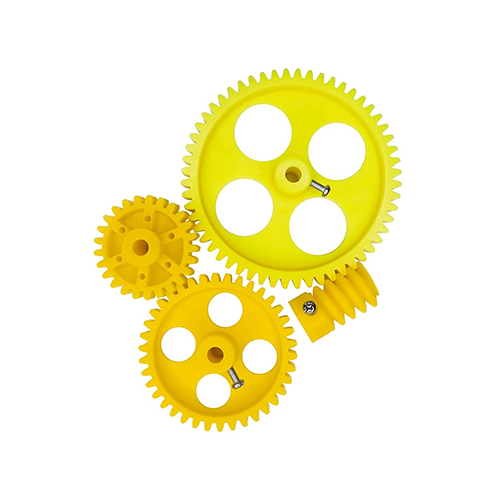

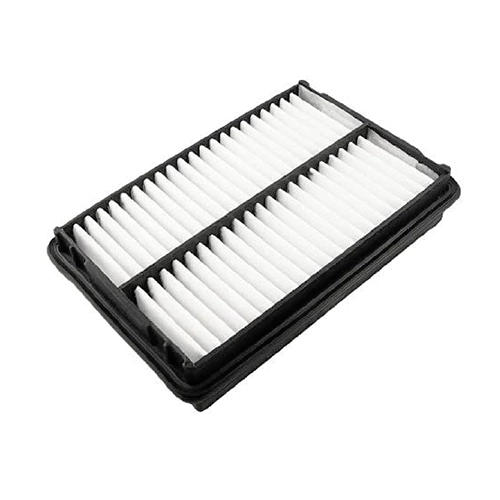

Finished Product

Show less

The hydraulic system operates with an energy saving regulating pump & proportional valve for drive & pressure regulation.
Centrally applied high performance hydraulic mould clamping cylinder
Linear transducer for clamping stroke with 1 mm accuracy.
Mould closing & opening speed profiles, 4 stages programmable.
Programmable closing & opening force.
Intermediate stop possible with closing & opening.
Monitoring of mould protection time.
Hydraulic mould protection regulated.
After alarm “Mould Protection” mould can either be stopped or opened.
Hydraulic Ejector, Forces, Speeds, Advancement & Retraction delay as well as stroke count (up to 5) programmable.
Modular injection unit as complete assembly group.
Injection unit equipped with linear transducer of 1 mm accuracy.
Four tie-bar type centrally fitted injection unit, vertical.
Continuous nozzle contact during the complete cycle.
Regulated injection speed profile, 5 steps programmable with injection delay.
Measurement, display and monitoring of injection time.
Switch over to holding pressure as a volume or time dependent function.
Material cushioning monitoring.
Screw circumferential speed display.
Open nozzle with screw in tip.
Electronically regulated cylinder and nozzle heating.
Monitoring of oil temperature & filter contamination.
Fine mesh oil filter in the return line.
Temperature regulator with digital temperature input, integrated in the PLC.
Temperature monitoring with tolerance band input regulation mode.
Corrosion proof stainless steel material hopper with emptying position.
Alarm for hopper emptying.

Control Cabinet Temperature
Hydraulic Oil Temperature
Plasticizing Cylinder Temperature
Screw RPM
Screw Position
Nozzle Contact Force
Holding Pressure
Back Pressure
Movements and force of mould and ejector
Ramp control sequence for mould and ejector end position

	Model	Units	ABS-VV-15		ABS-VV-25		ABS-VV-40		ABS-VV-60		ABS-VV-70		ABS-VV-85		ABS-VV-100		ABS-VV-125				ABS-VV-160		ABS-VV-210		ABS-VV-250
Injection System	Screw Diameter	mm	22	25	25	30	30	35	35	40	35	40	35	40	45	50	40	45	50	60	50	55	55	60	60	65
	Theoretical Shot Volume	cm³	38	49	49	70	95	129	158	207	202	263	202	263	333	412	314	397	490	706	471	570	570	678	706	829
	Max. Shot Weight PS	g	34	44	44	63	86	116	143	187	182	236	182	236	282	371	282	357	441	636	420	509	509	605	630	740
	Injection Pressure	kg/cm²	1769	1370	1678	1166	1784	1311	1858	1423	1858	1423	1858	1423	1677	1359	2373	1875	1519	1055	1856	1534	1749	1470	1588	1353
	Injection Rate	cm³/sec	49	63	52	75	85	116	125	163	81	106	102	133	113	139	101	126	156	225	157	190	180	215	189	221
	Screw Speed Max.	rpm	0-250		0-250		0-250		0-250		0-250		0-250		0-250		0-200				0-200		0-200		0-150
	Nozzle Retraction Stroke	mm	125		165		190		230		230		230		250		285				300		320		340
	No. of Temperature Control	zone	2		3		5		5		5		5		5		5				5		5		5
	Material Hopper Capacity	liters	12		12		22		22		22		22		22		22				30		60		60
Clamping System	Clamping Force	tons	15		25		40		60		70		85		100		125				160		210		250
	Opening Force	tons	3		7.5		8.3		10		15		15		16		18				18		20		20
	Max Tie bar Distance	mm	280x145		370x240		390x240		480x300		510x330		510x330		560x360		640x490				660x630		720x670		720x700
	Max Mould Size	mm	270 x 250		360x315		380x350		470x440		500x485		500x485		550x540		630x710				650x800		690x900		700x930
	Min. Mould Height	mm	120/180		100/180		150/200		150/200		200/250		200/250		200/250		250				300		350		350
	Opening Stroke	mm	190		200		200		200		250		250		250		300				300		400		400
	Max. Open Daylight	mm	310/370		300/380		350/400		350/400		450/500		450/500		450/500		550				600		750		750
	E'ector Force	tons	1.3		1.3		1.3		1.3		2.7		2.7		3.9		4.6				5.4		6.2		6.5
	Ejector Stroke	mm	33		50		50		70		100		100		100		110				110		110		110
Hydraulic & Electric Systems	Max. Hydraulic Pressure	bar	140		140		140		140		140		140		140		140				140		140		140
	Oil Reservoir Capacity	liters	75		145		170		240		265		265		360		400				500		535		600
	Pump Motor	kW	4		4		5.5		7.5		7.5		11.5		15		15				18.5		21.5		30
	Barrel Heating Power	kW	2.1		3.5		4.2		4.8		5		5		7.5		10.4				10.5		12.5		16.8
	Total Wattage	kW	6.1		7.5		9.7		12.3		12.5		16.5		22.5		25.4				29		34		46.8
	Machine Weight	tons	0.7		1.5		1.8		2.5		3.4		3.6		4.5		6.5				7.2		9.2		10.3
	Machine Dimensions (LxWxH)	m	1.18x0.73x2.71		2.18x0.99x2.70		2.4x1.13x3.07		2.36x1.37x3.26		2.53x1.37x3.60		2.53x1.37x3.60		2.7x1.5x3.7		2.88x1.70x4.45				2.7x1.45x4		2.8x1.3x4.6		2.8x1.7x4.6
