Ram Type Horizontal Clamping Vertical Injection Moulding Machines

  1. Clamping Force : 7 tons to 25 tons
  2. Oil Reservoir Capacity : 60 litres to 180 litres
  3. Fully Microprocessor Controller
  4. Auto Lubricating System
  5. 5 Point Toggle Clamping Design
  6. Vertical Screw Type Injection
  7. Programmable Speed & Pressure Control

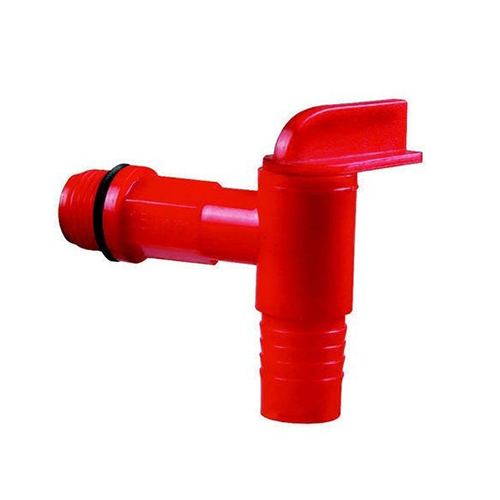

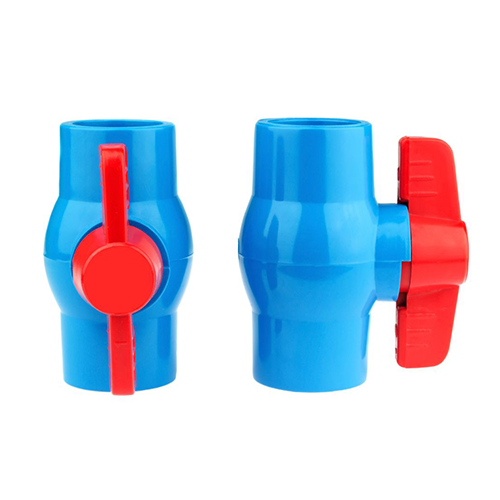

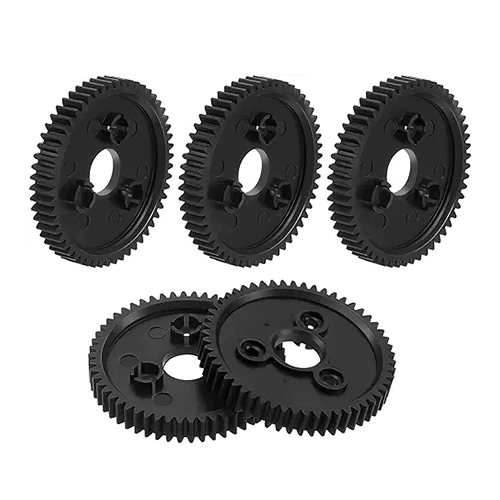

Finished Product

Show more
Show less
  • The hydraulic system operates with an energy saving regulating pump & proportional valve for drive & pressure regulation.
  • Centrally applied high performance hydraulic mould clamping cylinder
  • Linear transducer for clamping stroke with 1 mm accuracy.
  • Mould closing & opening speed profiles, 4 stages programmable.
  • Programmable closing & opening force.
  • Intermediate stop possible with closing & opening.
  • Monitoring of mould protection time.
  • Hydraulic mould protection regulated.
  • After alarm “Mould Protection” mould can either be stopped or opened.
  • Hydraulic Ejector, Forces, Speeds, Advancement & Retraction delay as well as stroke count (up to 5) programmable.
  • Modular injection unit as complete assembly group.
  • Injection unit equipped with linear transducer of 1 mm accuracy.
  • Four tie-bar type centrally fitted injection unit, vertical.
  • Continuous nozzle contact during the complete cycle.
  • Regulated injection speed profile, 5 steps programmable with injection delay.
  • Measurement, display and monitoring of injection time.
  • Switch over to holding pressure as a volume or time dependent function.
  • Material cushioning monitoring.
  • Screw circumferential speed display.
  • Open nozzle with screw in tip.
  • Electronically regulated cylinder and nozzle heating.
  • Monitoring of oil temperature & filter contamination.
  • Fine mesh oil filter in the return line.
  • Temperature regulator with digital temperature input, integrated in the PLC.
  • Temperature monitoring with tolerance band input regulation mode.
  • Corrosion proof stainless steel material hopper with emptying position.
  • Alarm for hopper emptying.
  • Control Cabinet Temperature
  • Hydraulic Oil Temperature
  • Plasticizing Cylinder Temperature
  • Screw RPM
  • Screw Position
  • Nozzle Contact Force
  • Holding Pressure
  • Back Pressure
  • Movements and force of mould and ejector
  • Ramp control sequence for mould and ejector end position
Model Unit ABS 60 ABS 100 ABS 150 ABS 200 ABS 300 ABS 500
Injection System
Screw Diameter mm 25 30 30 35 35 40 35 40 35 40 50
Injection Pressure kg/cm2 1119 777 1146 842 1165 892 1165 892 1165 892 965
Theoretical Shot Volume cm3 49 71 95 130 155 207 202 263 298 389 638
Max. Shot Weight (PS) gm 30 60 60 100 100 150 150 200 200 300 500
Screw Speed (Max) rpm 0-200 0-200 0-200 0-200 0-200 0-200
No. of Temperature Control zone 4 4 4 4 4 5
Clamping System
Material Hopper Capacity liters 8 10 10 20 20 30
Clamping Force Tons 7 10 13 18 18 25
Opening Force Tons 1.5 2.6 3.1 4 12 11
Max. Mold Size (LxW) mm 200 x 180 275 x 220 280 x 230 340 x 340 340 x 340 370 x 400
Opening Stroke mm 250 300 345 425 425 590
Max. Open Daylight mm 370 445 523 798 798 770
Ejector Force Tons 1.3 1.3 1.3 2 2 3.9
Ejector Stroke mm 50 70 70 70 70 100
Hydraulic & Electric Systems
Max. Hydraulic Pressure kg/cm2 140 140 140 140 140 140
Oil Reservoir Capacity liters 60 80 100 140 140 180
Pump Motor kW 2.2 3.5 3.5 5 5 8.8
Barrel Heating Power kW 3.2 4 5 6.1 6.1 8.3
Total Wattage kW 5.4 7.5 8.5 11.1 11.1 17.1
Machine Weight Tons 0.8 1 1.2 1.5 1.9 2.24
Machine Dimensions (LxWxH) m 1.3x1x2.5 1.6x1x2.8 2x1x3 2.2x1.2x3.2 2.2x1.2x3.3 2.3x1.3x3.8
