Single Slide Table Type Vertical Clamping Vertical Injection Moulding Machine

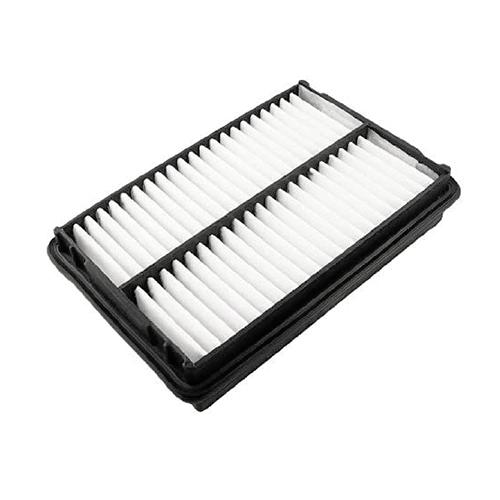

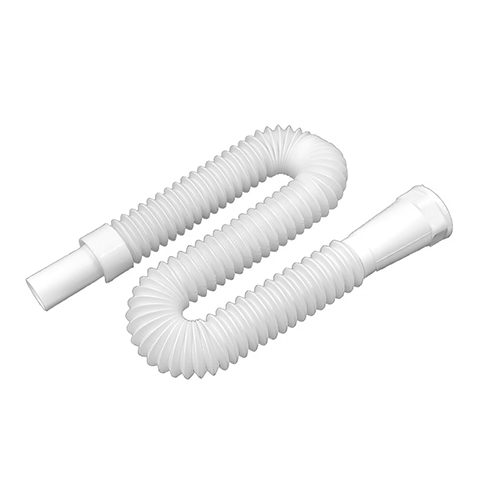

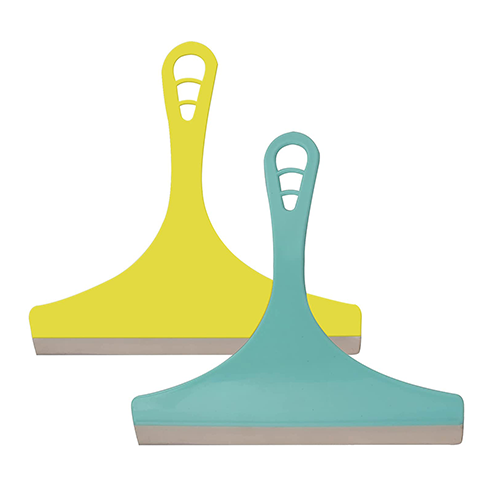

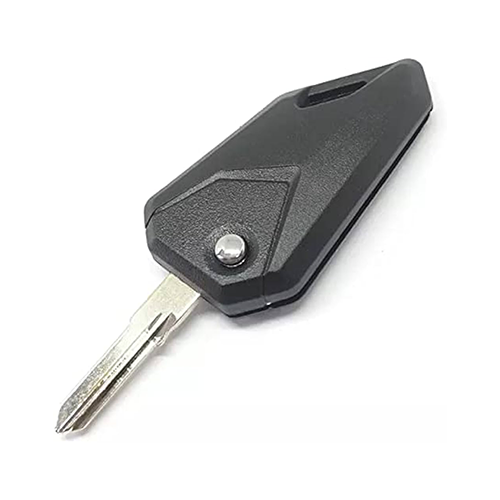

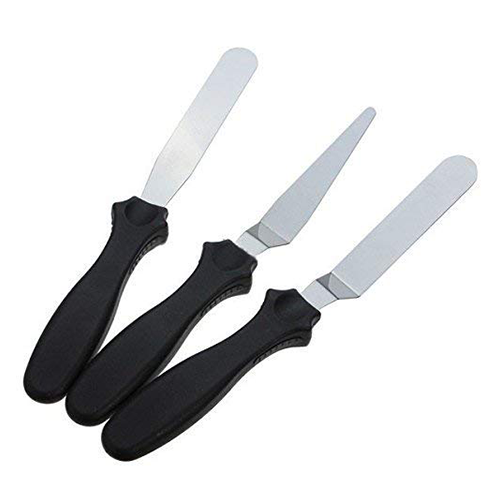

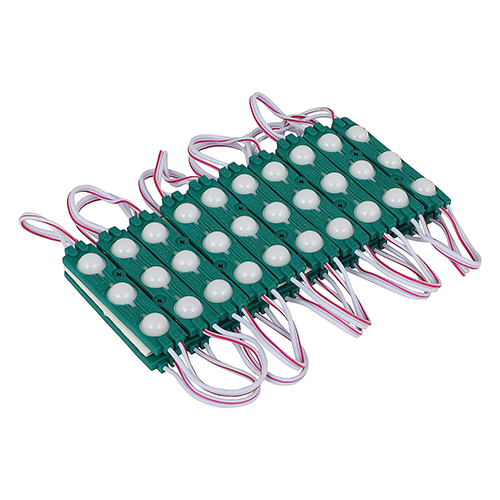

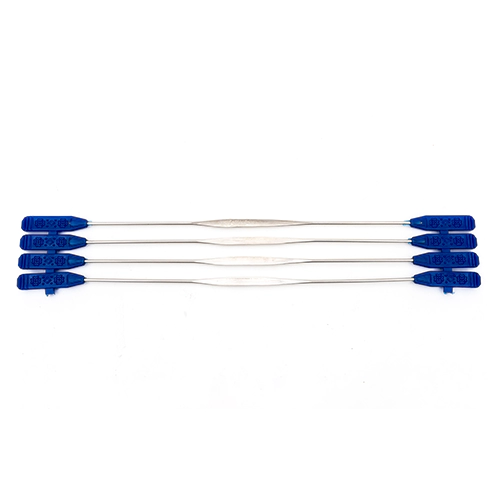

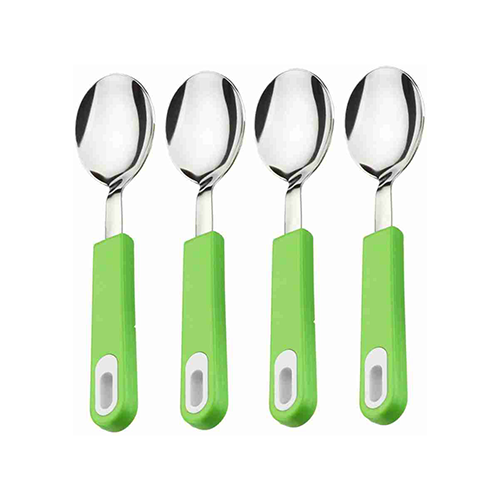

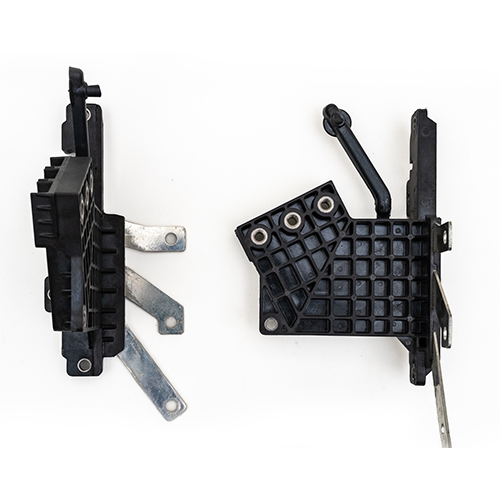

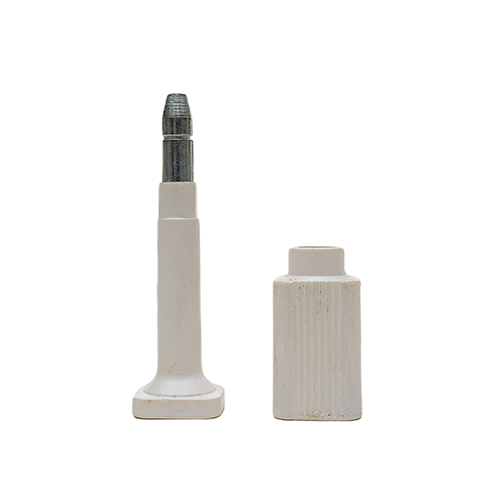

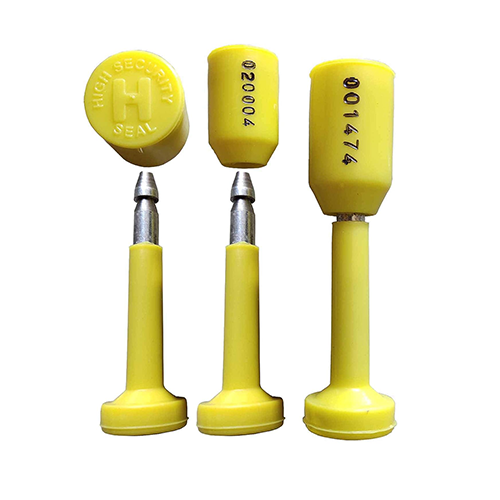

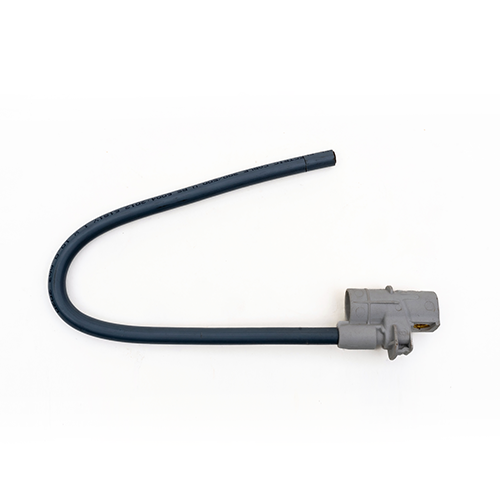

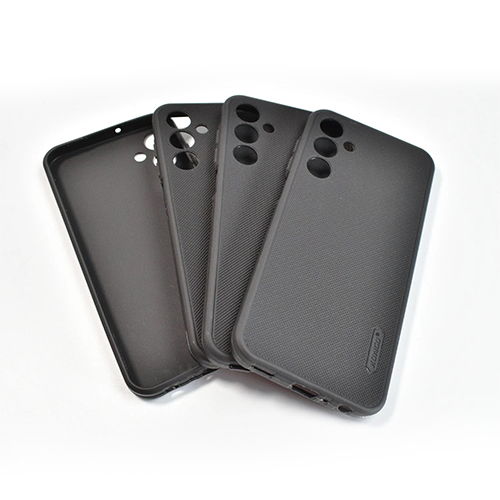

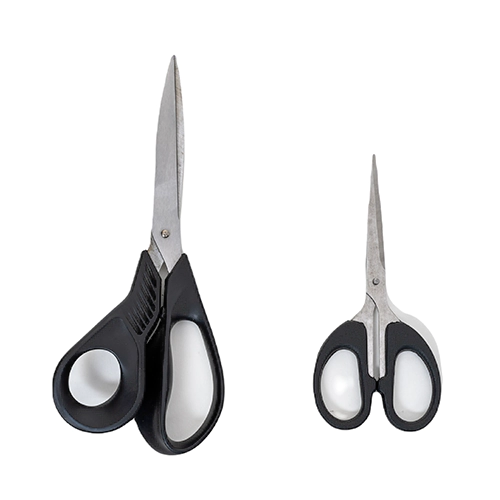

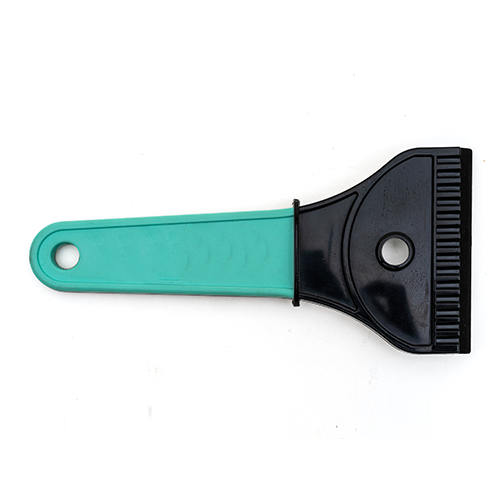

Finished Product

Manufacturing and Exporting

we are driven by a passion for innovation and excellence. For over 40 years, we have been at the forefront of revolutionizing the plastic injection moulding industry with our state-of-the-art machines and unmatched expertise.

  • Vertical four column robust clamping and vertical screw type injection.
  • Dual injection hydraulic cylinder for smooth and balanced injection.
  • Large L/D ratio for homogenous optimum melt for all type of engineering plastics.
  • Programmable single sliding for suitable insert moulding process.
  • Hydraulic ejector after sliding table out position.
  • High end PLC & HMI for controlling and programming function.
  • Hand protection safety features.
  • Power saving high tech hydraulic circuit.
Model Units ABS VV 1S/15 ABS VV 1S/25 ABS VV 1S/40 ABS VV 1S/60 ABS VV 1S/70 ABS VV 1S/85 ABS VV 1S/100 ABS VV 1S/125 ABS VV 1S/160 ABS VV 1S/210 ABS VV 1S/250
Injection System
Screw Diameter mm 22 25 25 30 30 35 35 40 35 40 35 40 45 50 40 45 50 60 50 55 55 60 60 65
Injection Pressure kg/cm² 1769 1370 1678 1166 1784 1311 1858 1423 1858 1423 1858 1423 1677 1359 2373 1875 1519 1055 1856 1534 1749 1470 1588 1353
Theoretical Shot Volume cm³ 38 49 49 70 95 129 158 207 202 263 202 263 333 412 314 397 490 706 471 570 570 678 706 829
Max. Shot Weight PS g 34 44 44 63 86 116 143 187 182 236 182 236 282 371 282 357 441 636 420 509 509 605 630 740
Injection Rate cm³/sec 49 63 52 75 85 116 125 163 81 106 102 133 113 139 101 126 156 225 157 190 180 215 189 221
Screw Speed Max. rpm rpm 0-250 0-250 0-250 0-250 0-250 0-250 0-250 0-200 0-200 0-200 0-150
Nozzle Retraction Stroke mm 125 150 150 215 230 215 300 300 300 320 340
No. of Temperature Control zone 2 3 4 4 5 5 5 5 5 5 5
Material Hopper Capacity liters 12 8 10 10 22 13 30 30 30 60 60
Clamping System
Clamping Force ton 15 25 40 60 85 85 100 125 160 210 250
Opening Force ton 3 7.5 8.3 10 15 15 15 16 18 20 20
Mould Dimensions (L x W) mm 280x145 350 x 230 390 x 240 460 x 310 500x400 500x400 620x400 500x500 660x630 720x670 720x700
Min. Mold Height mm 90/150 100/150 150/200 150/200 200/250 200/250 200 250/300 250/300 250/300 250/300
Opening Stroke mm 190 200 200 200 200 200 250 250 250 300 300
Max. Open Daylight mm 280/340 300/350 350/400 350/400 400/450 400/450 450 500/550 550 700 750
Ejector Force tons 1.3 1.3 1.3 1.3 1.3 1.3 3.3 4.6 5.4 7 7
Ejector Stroke mm 33 50 50 50 100 100 70 140 140 150 150
Slide Stroke mm 300 350 400 500 500 500 600 750 800 950 950
Hydraulic & Electric Systems
Max. Hydraulic Pressure kg/cm2 140 140 140 140 140 140 140 140 140 140 140
Oil Reservoir Capacity liters 80 140 180 180 226 226 210 372 500 535 600
Pump Motor kw 4 3.7 5.5 5.5 11.5 11.5 16.6 15 20.4 21.5 30
Barrel Heating Power kw 2.1 3.5 4.2 4.8 6 6 9 12.5 8 12.5 16.8
Total Wattage kw 6.1 7.2 9.7 10.3 17.5 17.5 28.6 27.5 28.4 34 46.8
Machine Weight ton 0.77 1.5 2 2.3 2.5 2.5 5.3 6.7 7.3 9.4 10.5
Machine Dimension (L x W x H) m 1.24x0.76x2.7 2.22x0.95x2.87 2.5x1.12x3.15 2.91x1.32x3.36 2.91x1.32x3.83 2.91x1.32x3.83 2.6X1.3X3.6 3.3x1.66x4.49 3.2x1.4x4.6 4.4x1.7x5.2 4.4x1.7x5.3
