Double Slide Table Type Vertical Clamping Vertical Injection Moulding Machine

  1. Clamping Force : 15 tons to 250 tons
  2. Programmable Double Sliding
  3. Four Column Vertical Clamping
  4. Suitable Insert Moulding Process
  5. High End PLC & HMI For Controlling
  6. Power Saving High Tech
  7. Hand Protection Safety Features

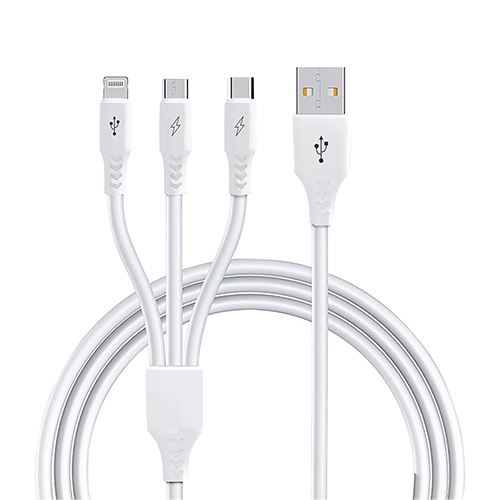

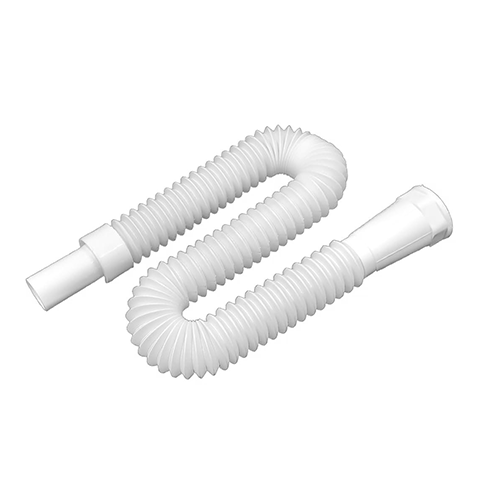

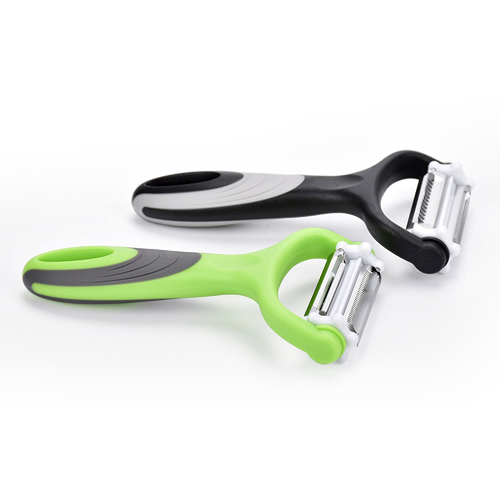

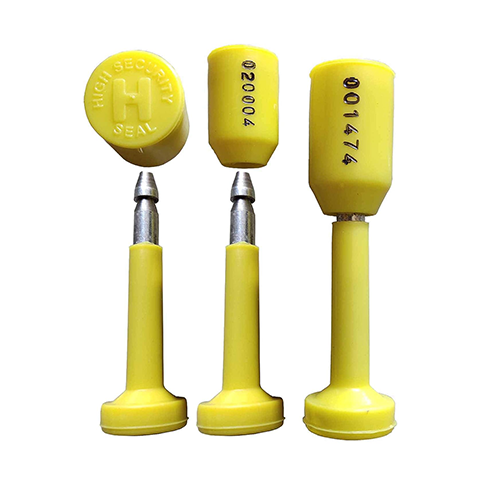

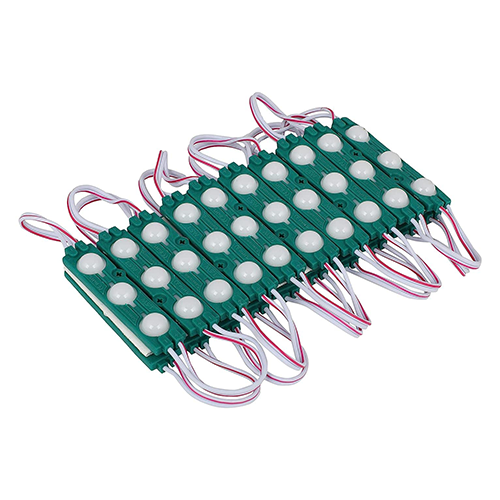

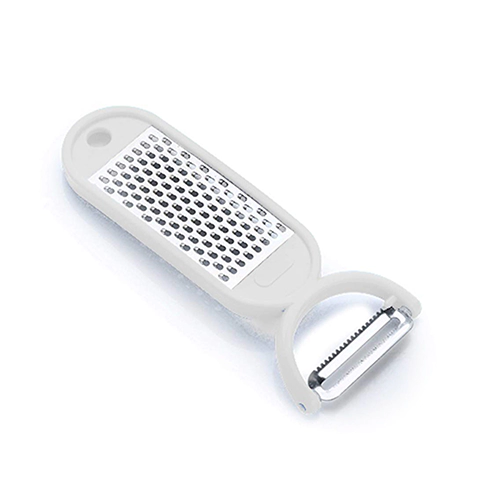

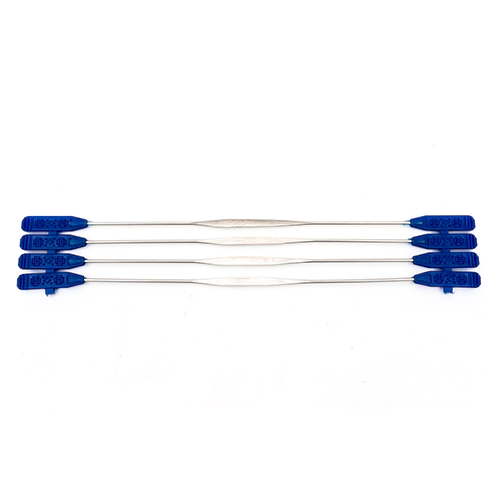

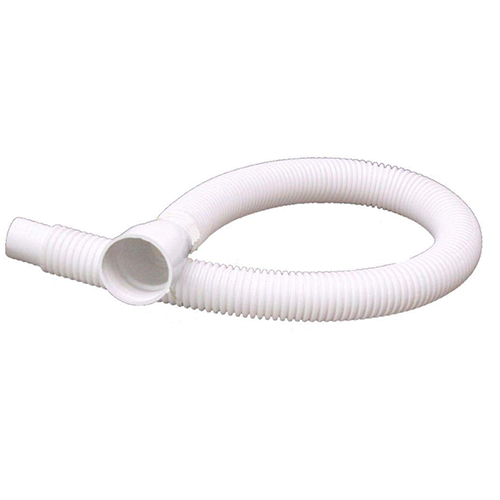

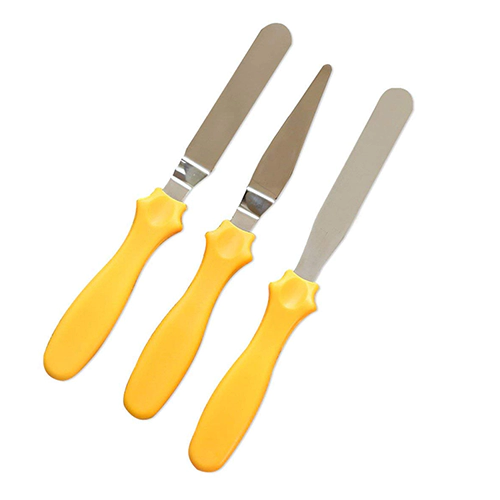

Finished Product

Show more
Show less
  • Vertical four column robust clamping and vertical screw type injection.
  • Dual injection hydraulic cylinder for smooth and balanced injection.
  • Large L/D ratio for homogenous optimum melt for all type of engineering plastics.
  • Programmable single sliding for suitable insert moulding process.
  • Hydraulic ejector after sliding table out position.
  • High end PLC & HMI for controlling and programming function.
  • Hand protection safety features.
  • Power saving high tech hydraulic circuit.
MODEL Unit ABS VV DS 15 ABS VV DS 25 ABS VV DS 40 ABS VV DS 60 ABS VV DS 70 ABS VV DS 85 ABS VV DS 100 ABS VV DS 125 ABS VV DS 160 ABS VV DS 210 ABS VV DS 250
Injection System
Screw Diameter mm 25 22 25 30 30 35 35 40 35 40 35 40 40 45 40 45 50 60 50 55 55 60 60 65
Injection Pressure kg/cm2 1370 1769 1678 1166 1784 1311 1858 1423 1858 1423 1858 1423 1423 1124 2373 1875 1519 1055 1856 1534 1749 1470 1588 1353
Theoretical Shot Volume cm3 49 38 44 71 71 110 110 166 202 263 289 389 263 333 314 397 490 706 471 570 570 678 706 829
Max. Shot Weight (PS) g 40 34 40 60 60 100 100 150 182 236 279 364 238 302 282 357 441 636 420 509 509 605 630 740
Injection Rate cm3/sec 63 49 44 63 70 96 66 86 81 106 102 133 153 193 101 126 156 225 157 190 180 215 189 221
Screw Speed Max. rpm 0-250 0-250 0-250 0-250 0-250 0-300 0-250 0-200 0-200 0-200 0-150
Nozzzle Reaction Stroke mm 125 165 190 230 230 230 250 285 300 320 340
Number of Temperature Control zone 2 3 4 4 5 5 5 5 5 5 5
Material Hopper Capacity liters 12 8 10 10 22 30 30 22 30 60 60
Clamping System
Clamping Force ton 15 25 40 60 70 85 100 125 160 210 250
Opening Force ton 3 7.5 8.3 10 11 13 16 18 18 18 18
Max. Mould Size (L x W) mm 280X145 350 x 230 390 x 240 460 x 310 500x375 500x375 560X360 590X475 660x630 720x670 720x700
Min. Mold Height mm 120/180 100/150 150/200 150/200 200/250 200/250 200/250 250 250/300 350 350
Opening Stroke mm 190 200 200 200 250 250 250 250 300 400 400
Max. Open Daylight mm 310/370 300/350 350/400 350/400 450/500 450/500 450/500 500 550/600 750 750
Ejector Force ton 1.3 1.3 1.3 1.3 2.7 2.7 3.9 4.6 5.4 7 7
Ejector Stroke mm 33 50 50 50 60 60 100 140 140 150 150
Slide Stroke mm 300 350 400 500 500 500 600 750 800 950 950
Hydraulic & Electric Systems
Max. Hydraulic Pressure kg/cm2 140 140 140 140 140 140 140 140 140 140 140
Oil Reservoir Capacity liters 75 140 180 180 260 300 360 372 500 535 600
Pump Motor kw 4 3.7 5.5 5.5 7.5 11.2 15 11.2 20.4 21.5 30
Barrel Heating Power kw 2.1 3.5 4.2 4.8 4.5 4.5 5 8 8 12.5 16.8
Total Wattage kw 6.1 7.2 9.7 10.3 12 15.7 20 19.2 28.4 34 46.8
Machine Weight ton 0.85 1.7 2 2.7 3.6 3.8 4.6 6.7 7.4 9.6 10.7
Machine Dimension (L x W x H) m 1.24x0.76x2.7 2.22x0.95x2.87 2.5x1.12x3.15 2.91x1.32x3.36 2.91x1.32x3.83 2.91x1.32x3.83 2.6X1.3X3.6 3.3x1.66x4.49 3.2x1.4x4.6 4.4x1.7x5.2 4.4x1.7x5.3
