Double Color Rotary Table Type Vertical Clamping & Twin Vertical Injection Moulding Machine

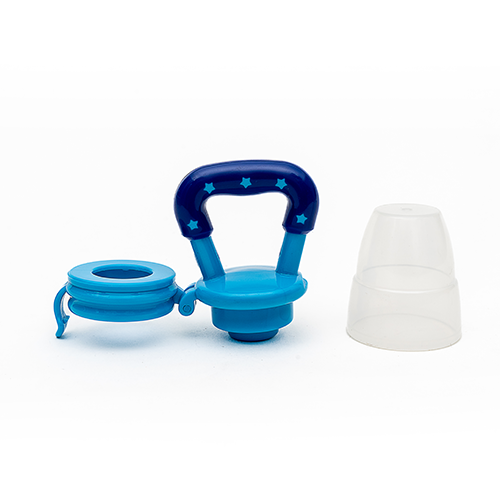

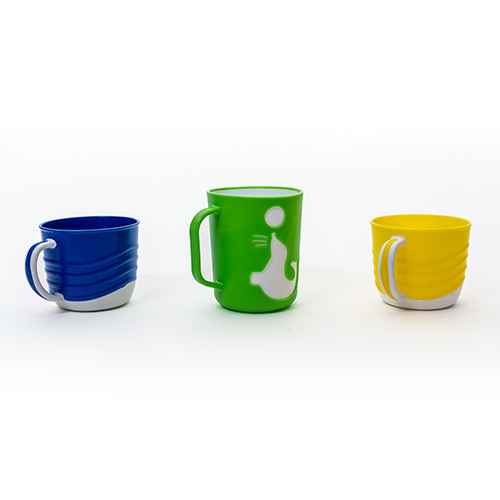

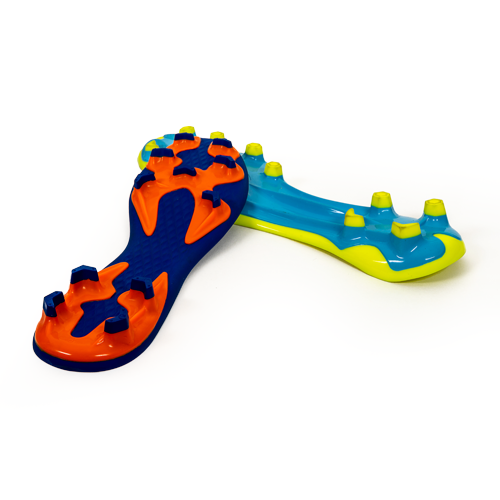

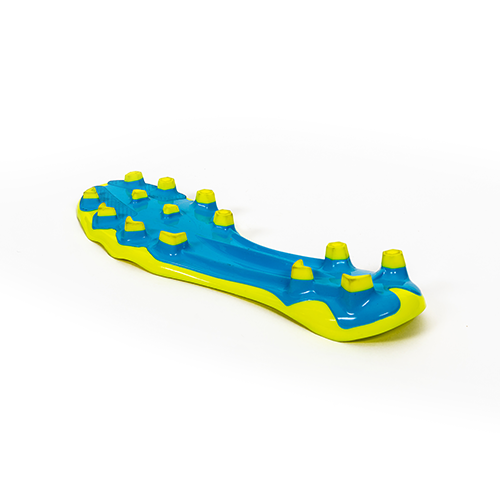

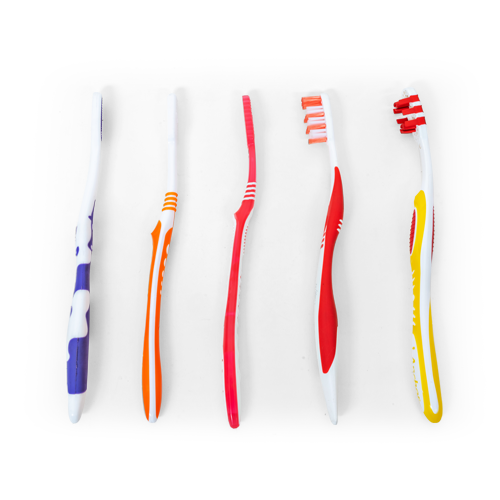

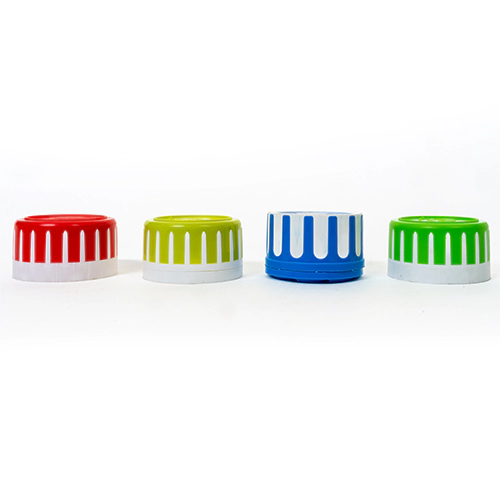

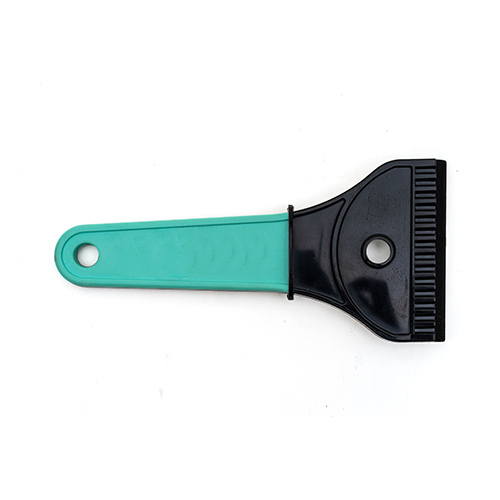

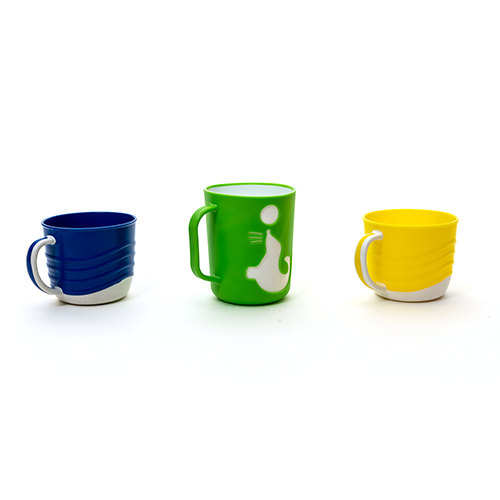

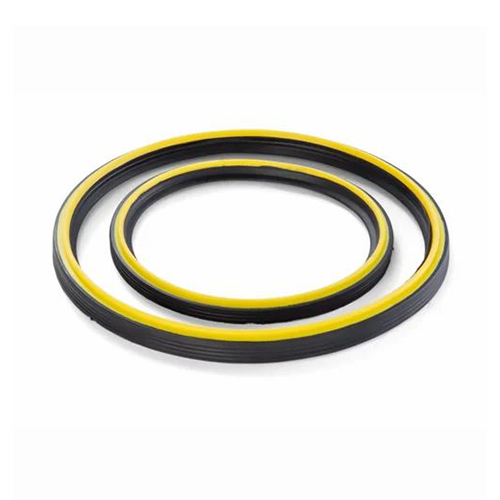

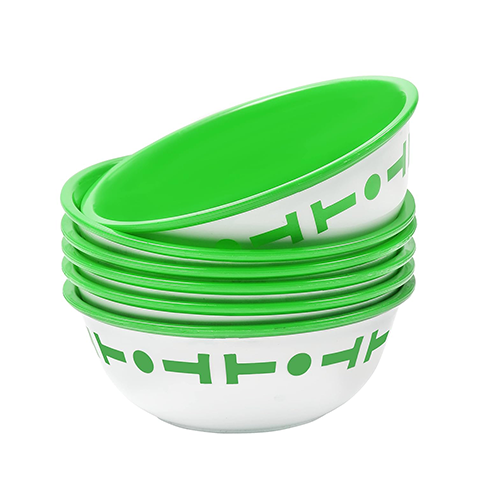

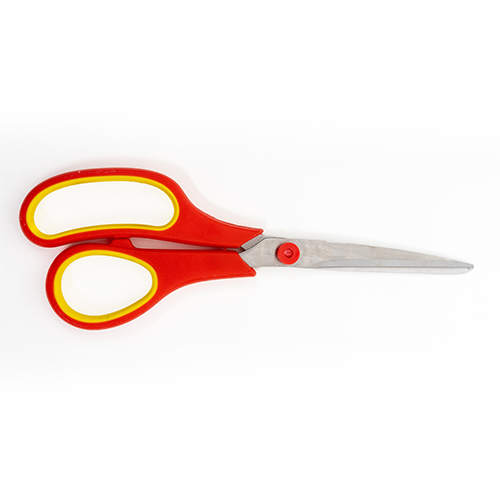

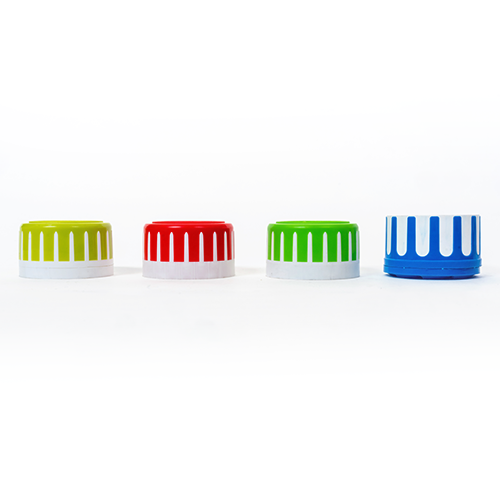

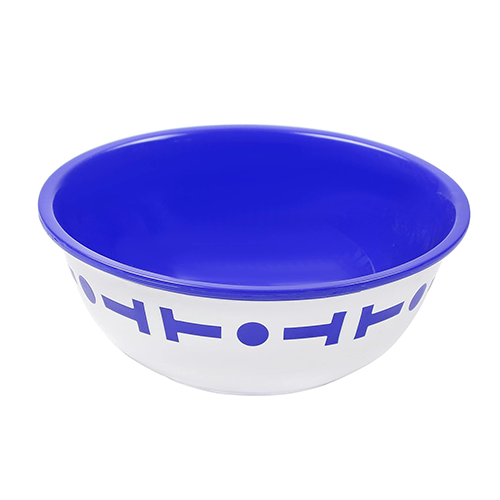

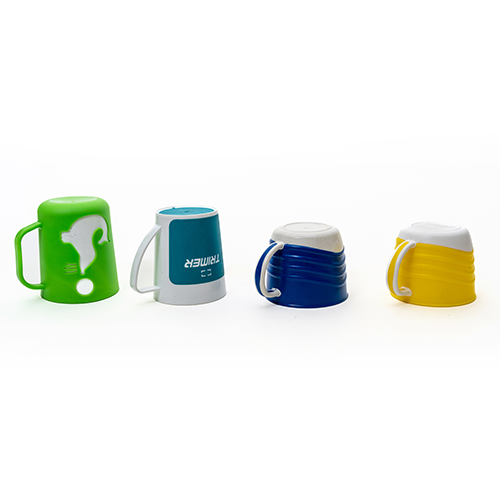

Finished Product

Manufacturing and Exporting

we are driven by a passion for innovation and excellence. For over 40 years, we have been at the forefront of revolutionizing the plastic injection moulding industry with our state-of-the-art machines and unmatched expertise.

  • Vertical three column programmable robust mould clamping.
  • Two separate injection unit & clamping unit.
  • Three & four station rotary table indexing.
  • Common rotary table with 0 to 120 clock wise continuous rotational movement.
  • Individual hydraulic power pack for each clamping-injection unit.
  • Two moulds are clamped on upper movement plate and three cavity moulds are clamped on rotary disc.
  • Rotary colling system for rotary disc mounted moulds
  • Advance program for microprocessor controller suitable two color machine operation functions and controls.
  • Rotary movement with high-tech positioning and safety devices.
  • Programmable rotary movement with fast-slow speed and quick positioning.
  • Additional lock pin for mould positioning and avoid mould accident.
  • Machine structure designed for robot interface for complete automation.
  • Hydraulic ejector stroke adjustable thru HMI
  • Light curtain sensor for hand protection.
Model Units SP A B C D E F G H
Injection Unit
Screw Diameter mm 20 22 25 25 30 30 35 35 40 35 40 45 50 40 45 50 50 55 55 60
Theoretical Injection Volume cm3 31 38 49 49 70 95 129 158 207 202 263 333 412 314 397 490 471 570 570 678
Injection Weight (PS) g 27 34 44 44 63 86 116 143 187 182 236 282 371 282 357 441 420 509 509 605
Injection Pressure kg/cm2 2141 1769 1370 1678 1166 1784 1311 1858 1423 1858 1423 1677 1359 2373 1875 1519 1856 1534 1749 1470
Injection Rate cm3/sec 33 41 53 52 75 85 116 125 163 102 133 113 139 101 126 156 157 190 180 215
Injection Stroke mm 100 100 135 165 210 210 250 240 240
Temperature Controller Zone 2 3 5 5 5 5 5 5 5
Barrel Heating Power kW 2.1x2 3.5x2 4.2x2 4.8X2 5X2 7.5X2 10.4X2 10.5X2 12.5
Machine Model Units ABS-VV-2C-3R-55 ABS-VV-2C-3R-90 ABS-VV-2C-3R-125 ABS-VV-2C-3R-170 ABS-VV-2C-3R-250 ABS-VV-2C-3R-350
Option Injection System SERIES I II I II I II I II I II I II
No SP,A SP,A SP,A,B SP,A,B A,B,C A,B,C B,C,D B,C,D C,D,E C,D,E D,E,F,G D,E,F,G
Clamping Unit
 Clamping Force ton 55 90 125 170 250 350
Clamping Stroke mm 200 200 250 250 400 400
Min Mold Height mm 200 / 250 200 / 250 300 / 350 300 / 350 350 / 400 350 / 400
Max. Open Daylight mm 400 / 450 400 / 450 550 / 600 550 / 600 750 / 800 750 / 850
Rotary Table Diameter mm 680 880 980 1170 1360 1590
Ejector Distance mm 75 75 95 95 150 150
Ejector Force tons 1.3 2.7 4.6 5.4 6.2 6.2
Others
 System Pressure bar 140 140 140 140 140 140
Oil Tank Capacity L 300 350 460 510 800 1035
Servo Electric Power kW (HP) 6.7(9) + 6.7(9) 6.7(9) + 8.6(11.5) 8.6(11.5) + 11.6(15.5) 11.6(15.5) + 18.2(24.4) 18.2(24.4) + 20.4(27.3) 20.4(27.3) + 23(30.8)
Machine Dimensions(L*W*H) m 2.1 x1.5x2.8 2.4 x1.28x3.4 2.8x1.6 x3.6 3.35x2.2x3.9 3.5 x 2.4 x 4.2 3.7 x 2.7 x 4.8
Machine Weight t 3.7 5.6 9 10 15 20
