Rotary Table Type Vertical Clamping Vertical Injection Moulding Machine

Clamping Force : 15 tons to 250 tons
Oil Reservoir Capacity : 75 litres to 600 litres
Standard Rotary Function With 0° to 180°
Clockwise-Anticlockwise Movement
Fast-Slow Speed & Quick Positioning
Three Column Vertical Clamping
Additional Lock Pin For Mould Positioning

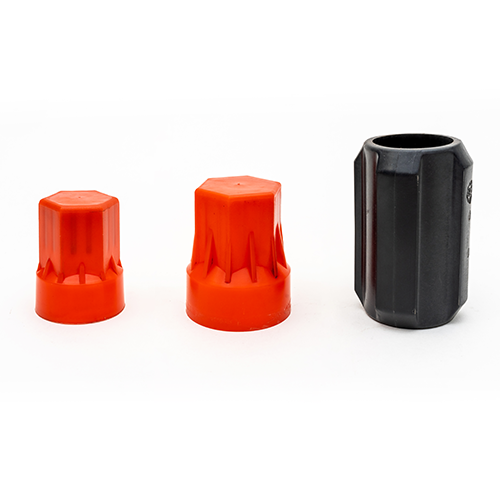

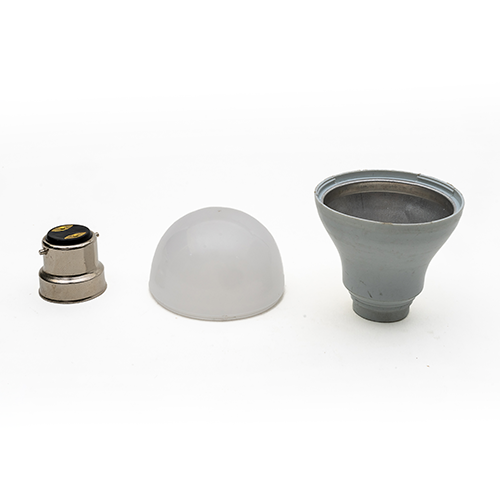

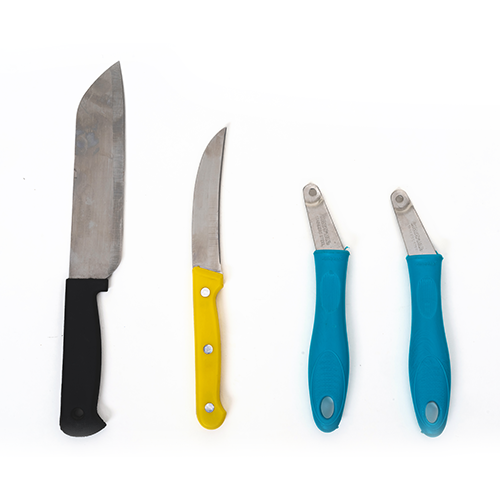

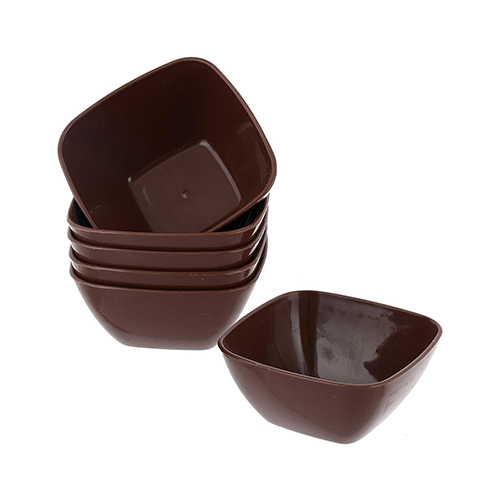

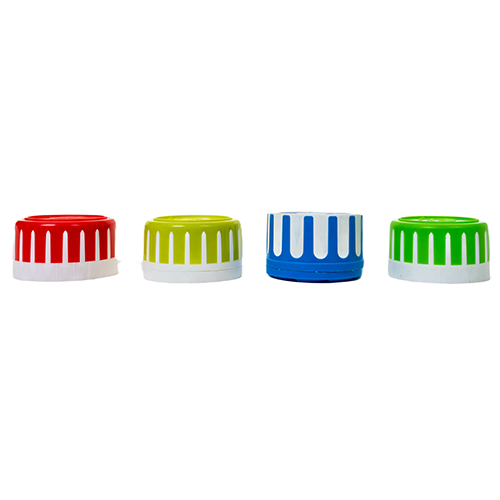

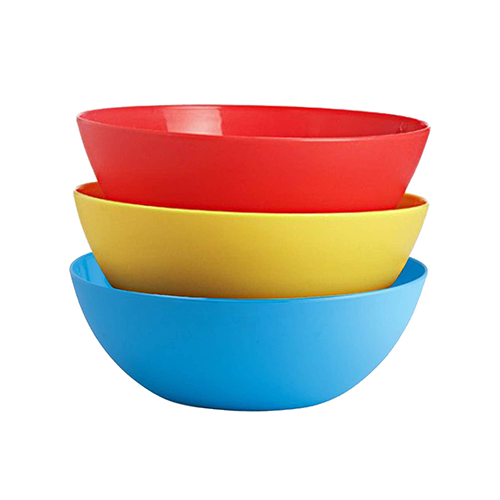

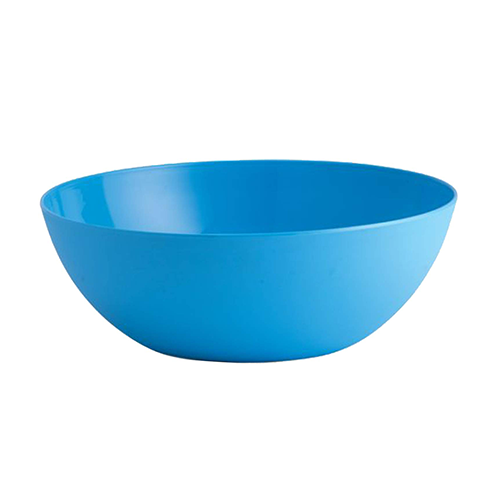

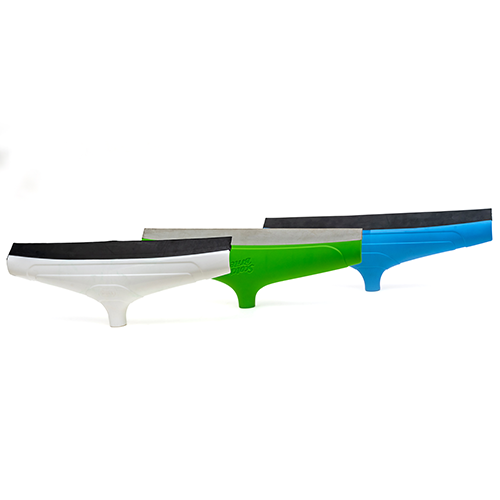

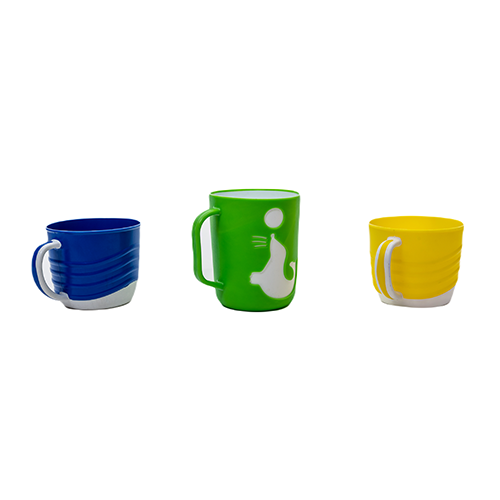

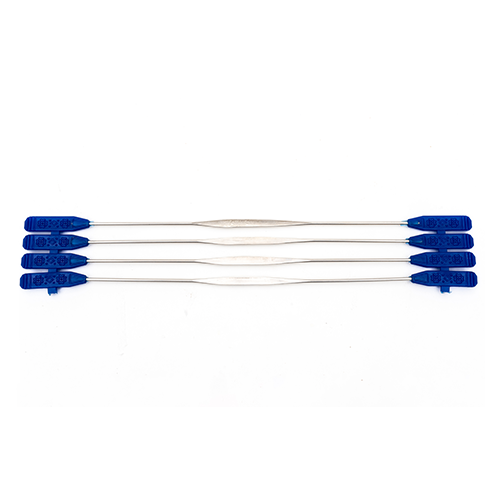

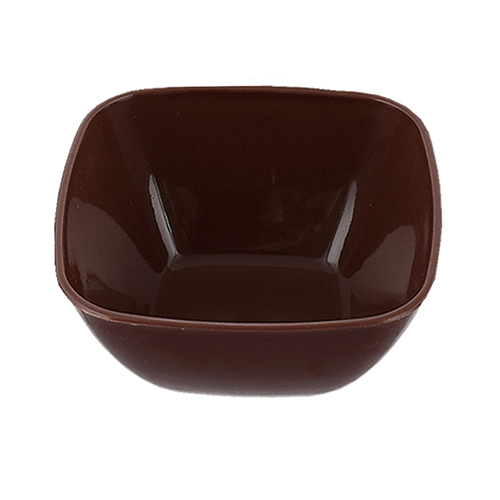

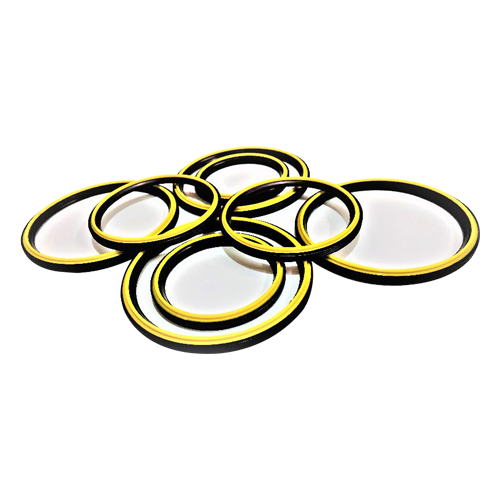

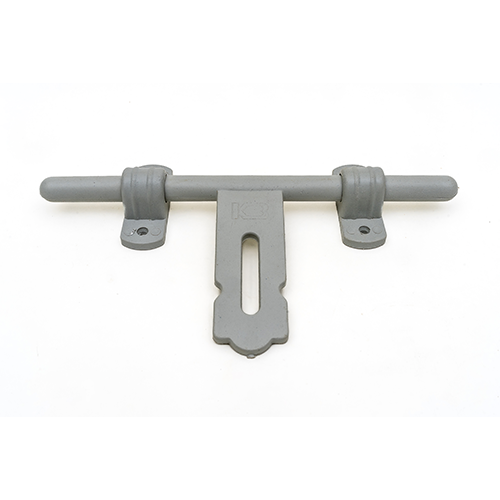

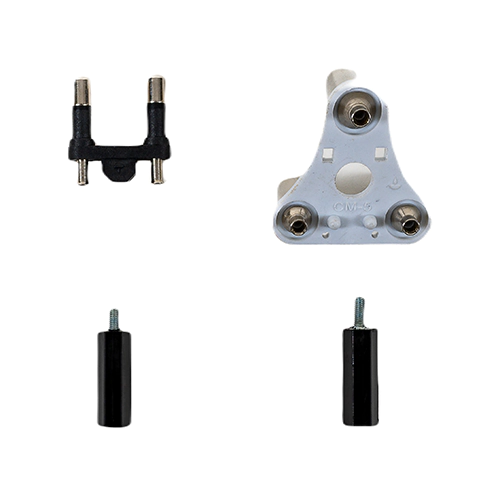

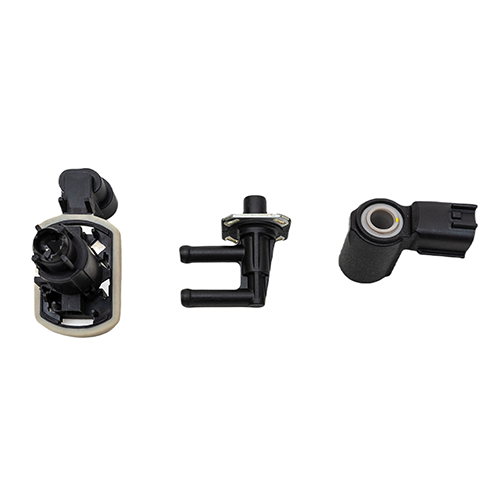

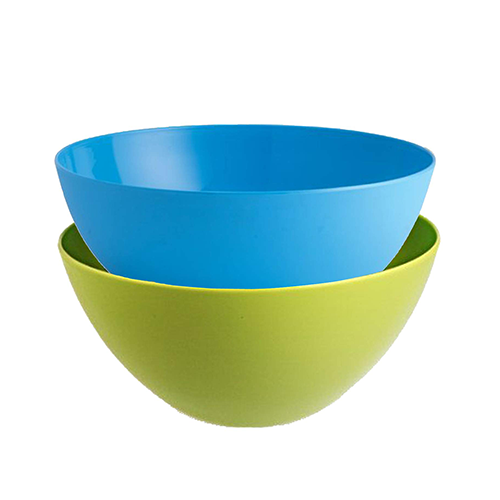

Finished Product

Show less

Attribute
Technical Specifications

Vertical three column robust clamping and vertical screw type injection.
Large L/D ratio for homogenous optimum melt for all type of engineering plastics.
Standard rotary function with 0 to 180 clock wise-anti close wise rotational movement.
Rotary movement with high-tech positioning and safety devices.
Programmable rotary movement with fast-slow speed and quick positioning.
Additional lock pin for mould positioning and avoid mould accident.
Machine structure designed for robot interface for complete automation.
Hydraulic ejector stroke adjustable thru HMI.
Light curtain sensor for hand protection.

	Model	Units	ABS-VV-R-15		ABS-VV-R-25		ABS-VV-R-40		ABS-VV-R-60		ABS-VV-R-70		ABS-VV-R-85		ABS-VV-R-100		ABS-VV-R-125				ABS-VV-R-160		ABS-VV-R-210		ABS-VV-R-250
Injection System	Screw Diameter	mm	22	25	25	30	30	35	35	40	35	40	35	40	45	50	40	45	50	60	50	55	55	60	60	65
	Theoretical Shot Volume	cm³	38	49	49	70	95	129	158	207	202	263	202	263	333	412	314	397	490	706	471	570	570	678	706	829
	Max. Shot Weight PS	g	34	44	44	63	86	116	143	187	182	236	182	236	282	371	282	357	441	636	420	509	509	605	630	740
	Injection Pressure	kg/cm²	1769	1370	1678	1166	1784	1311	1858	1423	1858	1423	1858	1423	1677	1359	2373	1875	1519	1055	1856	1534	1749	1470	1588	1353
	Injection Rate	cm³/sec	49	63	52	75	85	116	125	163	81	106	102	133	113	139	101	126	156	225	157	190	180	215	189	221
	Screw Speed Max.	rpm	0-250		0-250		0-250		0-250		0-250		0-250		0-250		0-200				0-200		0-200		0-150
	Nozzle Retraction Stroke	mm	125		165		190		230		230		230		250		285				300		320		340
	No. of Temperature Control	zone	2		3		5		5		5		5		5		5				5		5		5
	Material Hopper Capacity	liters	12		12		22		22		22		22		22		22				30		60		60
Clamping System	Clamping Force	tons	15		25		40		60		70		85		100		125				160		210		250
	Opening Force	tons	3		7.5		8.3		10		15		15		16		18				18		20		20
	Rotary Table	mm	580		640		800		900		1000		1000		1100		1251				1480		1600		1800
	Max Mould Size	mm	150x150		200x200		280x280		340x340		365x365		365x365		420x420		475x475				540x540		570x570		600x600
	Min. Mould Height	mm	120/180		100/180		150/200		150/200		200/250		200/250		200/250		250				300		350		350
	Opening Stroke	mm	190		200		200		200		250		250		250		300				300		400		400
	Max. Open Daylight	mm	310/370		300/380		350/400		350/400		450/500		450/500		450/500		550				600		750		750
	Ejector Force	tons	1.3		1.3		1.3		1.3		2.7		2.7		3.9		4.6				5.4		6.2		6.5
	Ejector Stroke	mm	35		75		75		75		75		75		75		110				110		150		150
Hydraulic & Electric Systems	Max. Hydraulic Pressure	bar	140		140		140		140		140		140		140		140				140		140		140
	Oil Reservoir Capacity	liters	75		135		170		205		310		310		320		350				500		535		600
	Pump Motor	kW	4		4		5.5		7.5		7.5		11.5		15		15				18.5		21.5		30
	Barrel Heating Power	kW	2.1		3.5		4.2		4.8		5		5		7.5		10.4				10.5		12.5		16.8
	Total Wattage	kW	6.1		7.5		9.7		12.3		12.5		16.5		22.5		25.4				29		34		46.8
	Machine Weight	tons	1.1		1.8		2.8		3.2		4.3		4.5		6		7.5				9		11		13
	Machine Dimensions (LxWxH)	m	1.1x0.8x2.6		2.24 x 1.38 x 2.78		2.47x1.53x3.10		2.67x1.58x3.39		2.75x1.7x3.75		2.75x1.7x3.75		2.8x1.8x3.97		3.06x2.0x3.8				3.5x2.1x4.14		3.6x2.0x4.7		3.8x2.2x4.9

ABS-VV-R Series

Rotary Table Type Vertical Clamping Vertical Injection Moulding Machine

Finished Product
